Axon Body 4 FLEX POV Camera Mount

The JB Squared Fabrication Body 4 POV Mount is our solution to helmet mounting the Axon Body 4 POV line of cameras.

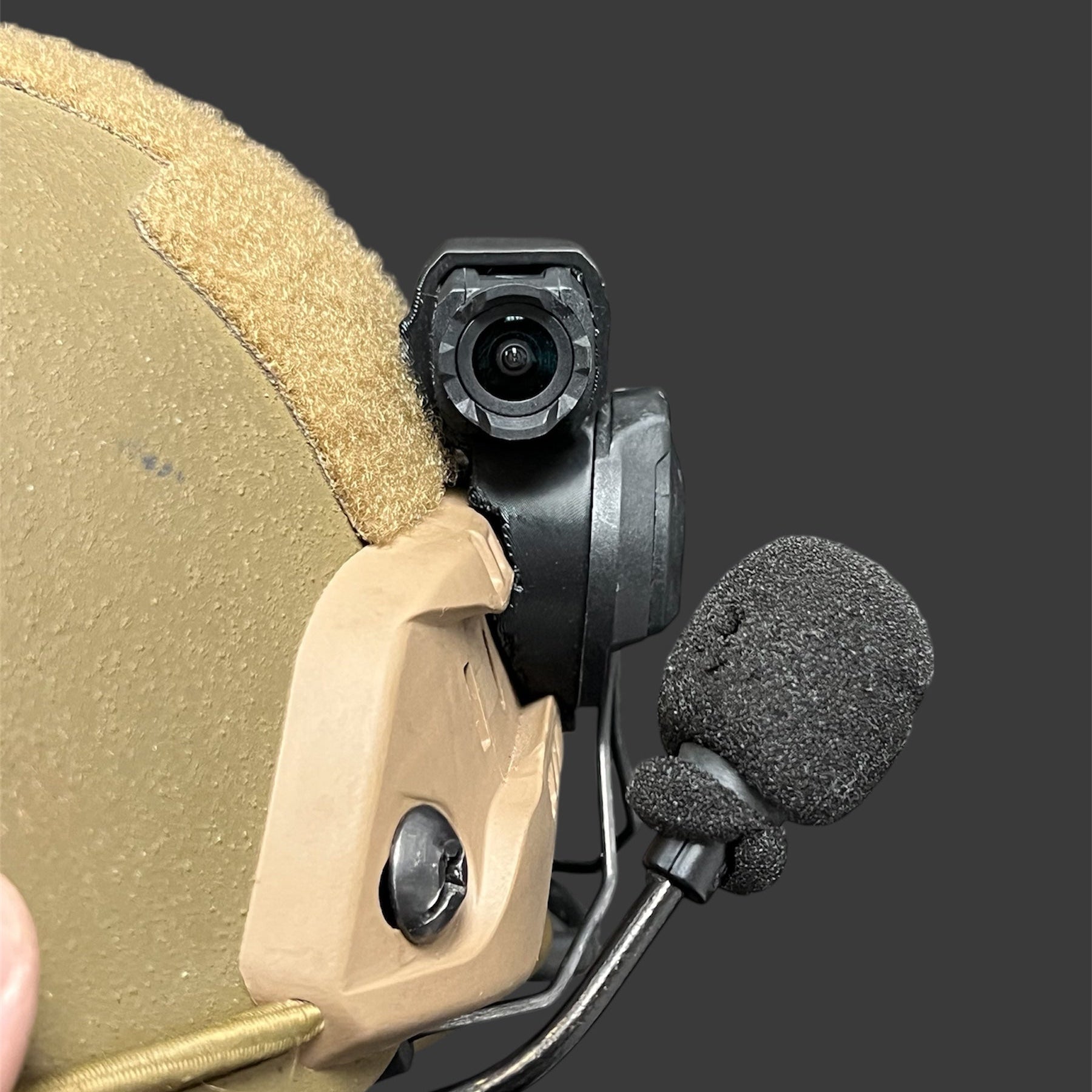

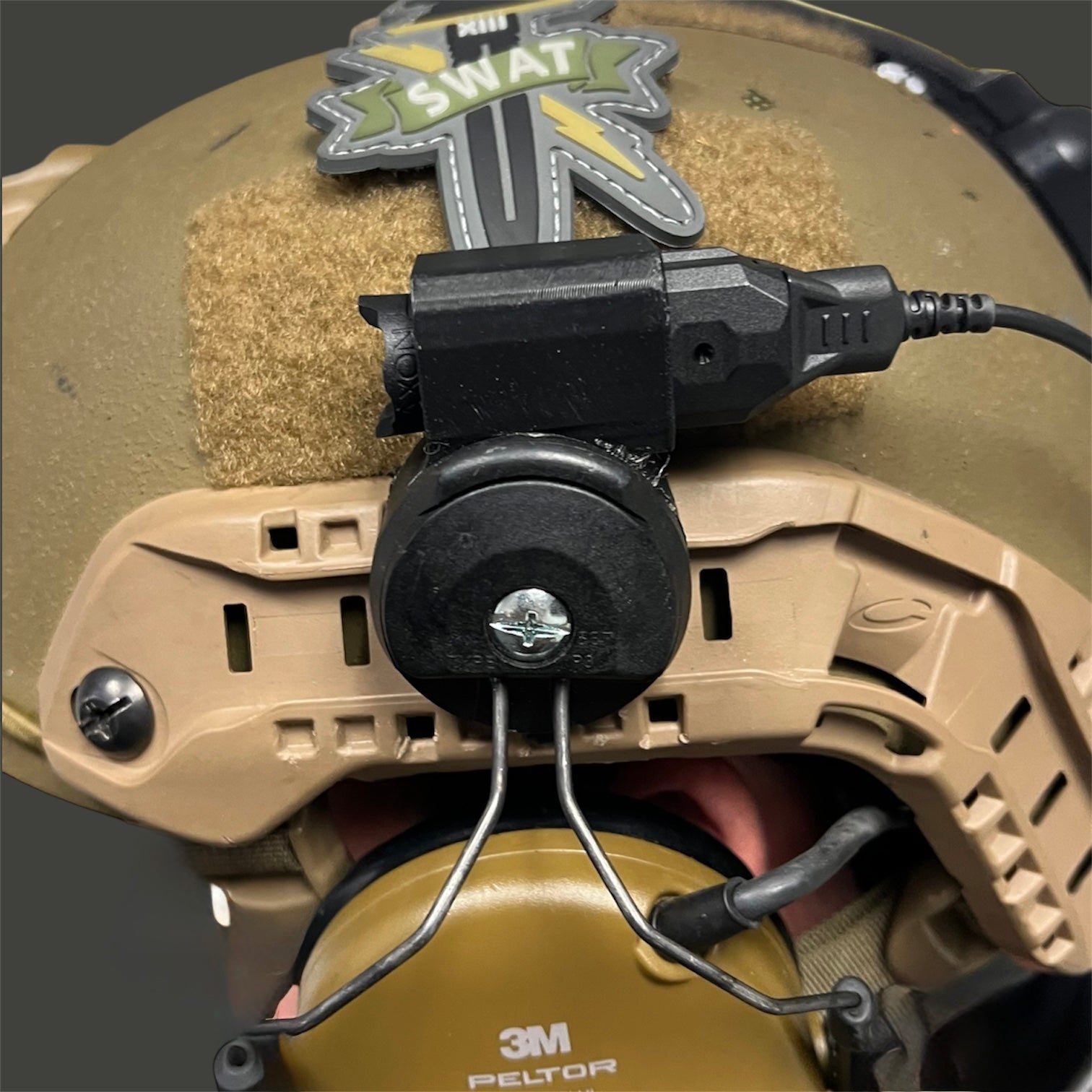

The Body 4 Flex POV Mount integrates the camera mount with the Peltor style ARC rail headset mount. This design creates a low profile, sturdy mounting solution that frees up rail  space on the helmet while providing enhanced camera retention compared to standard issue mounts. The mount retains the camera via an interference fit and also has a cable retention point for strain relief and cable management.

Assembly is simple and straight forward. Unscrew the center screw on the 3M dovetail mount and swap the parts to the JB Squared Mount and reassemble with the provided hardware.

When reassembling, to ensure the hardware is tightened correctly we recommend using two screwdrivers. When tightened correctly, the user will feel the screw bottom out.

The Body 4 Flex POV Mount is 3D printed out of a durable, impact resistant material that is capable of withstanding temperatures upwards of 200 degrees.

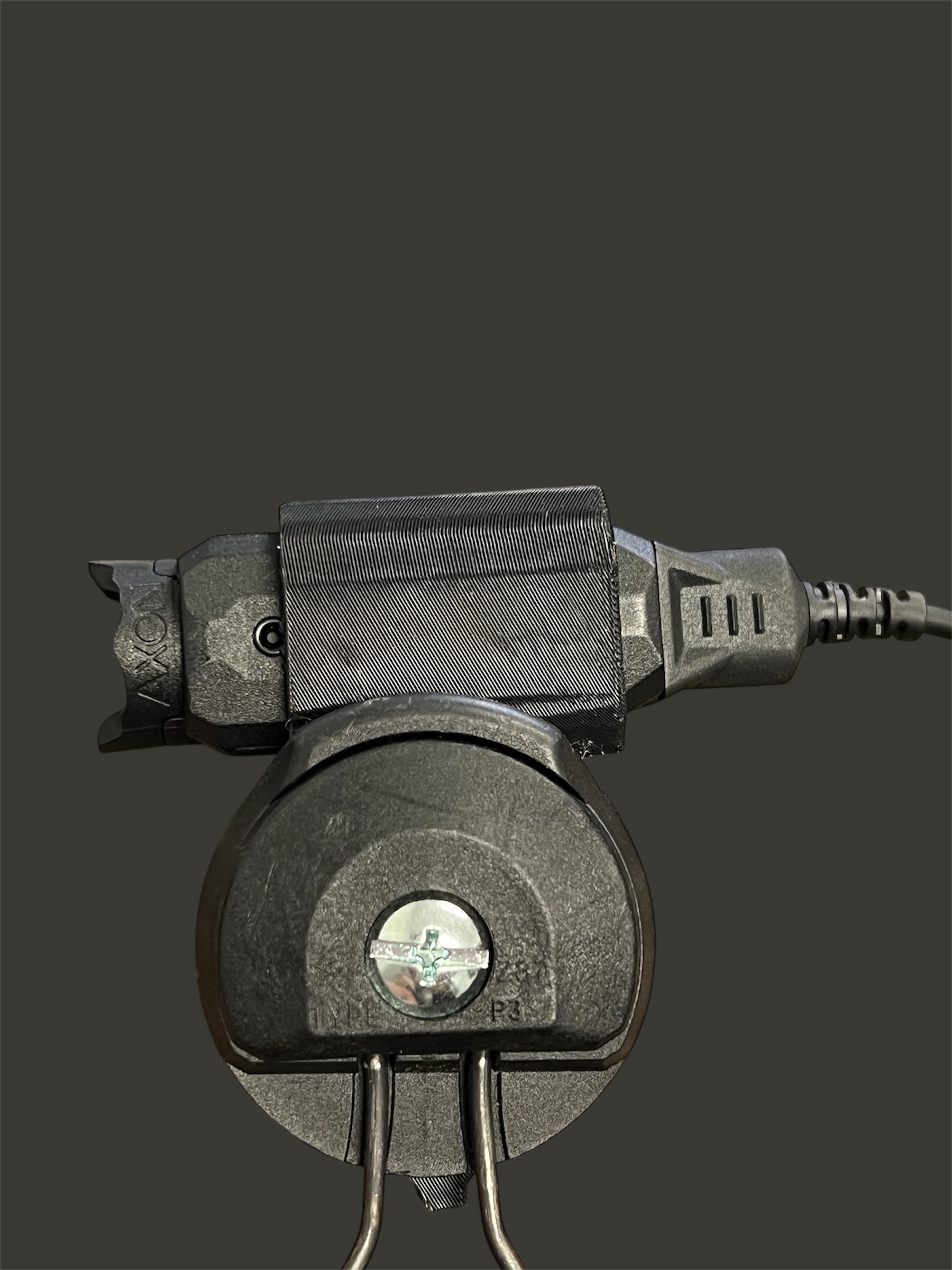

Mount side is based off end user left and right with the camera inserted into the mount from the front side. Mounts can also be used on the opposite side of the helmet with the camera inserted from the rear for a flush camera Mount.

Included:

1 -Body 4 POV Mount

1 - Mounting Hardware
